Hamer Fischbein, LLC PILS 300

Primary Photo

Manufacturer:Hamer Fischbein, LLC

Model:PILS 300

Category:Glue Bag Sealer

Description:
The FISCHBEIN PILS 300 Series is the 3rd generation of an innovative sealing system that’s specifically designed to be used with pinch style multi-wall paper bags that have a polyethylene inner liner (1 to 3 mil thick). The PILS features a continuous sealing process that sequentially seals the bag’s inner liner and then the exterior pre-glued bag top using Teflon® coated folder technology and a high efficiency heater system. Reliable and easy to use, the unit’s variable speed drive system and digital temperature control means you can operate at bagging speeds up to 75 linear feet per minute. The PILS compact, motorized height adjustable pedestal design is fully mobile and can easily be integrated into semi or fully automated bagging applications.

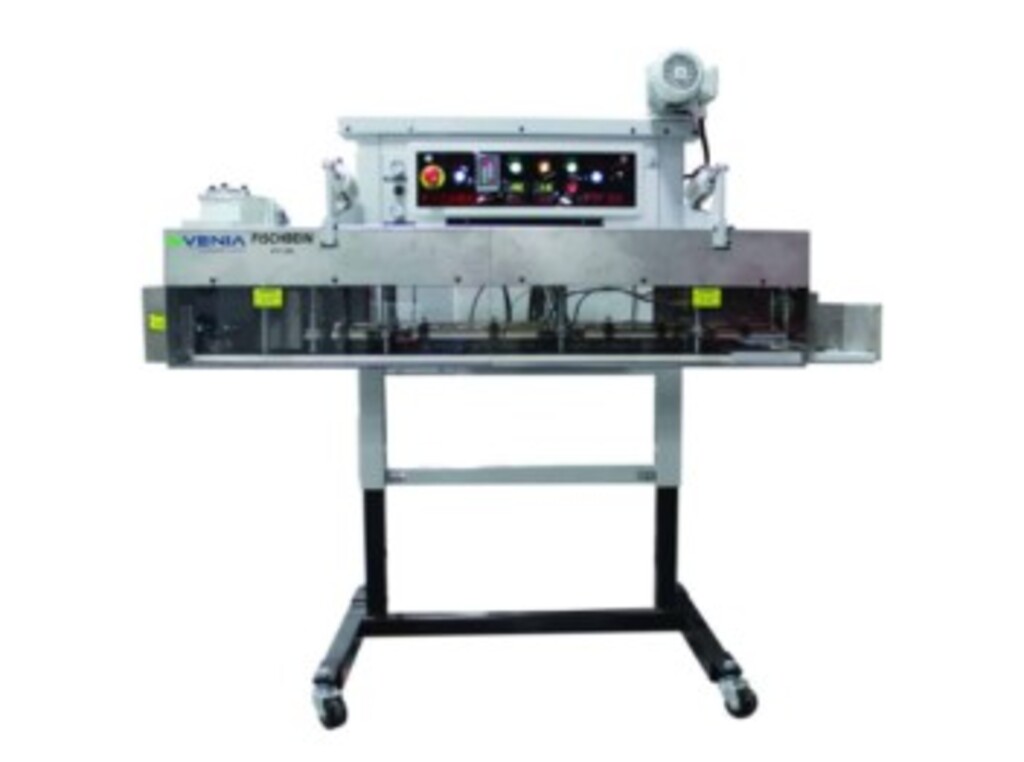

Fischbein PILS 300 Pinch Inner Liner Closer Sealer
Factory New
#E310715

New Fischbein PILS 300 Pinch Inner Liner Closer Sealer In Stock

Fischbein Brand PILS 300 Pinch Inner Liner Sealer features a continuous sealing process that sequentially seals the bag’s inner liner and then folds and seals the top of the pre-glued pinch bag. Operating at speeds up to 75 linear feet per minute, the PILS 300 is safe and easy to use.  It can be easily integrated in semi or fully automated bagging applications.  The patented breakaway design eliminates costly downtime caused by bag jams while allowing easy cleaning and service of the hot air manifold and bag folder.

  • Designed for pinch style multi-wall paper bags that have a polyethylene inner liner 1 to 3 mil thick
  • Production output rate: Up to 75 linear feet per minute, depending on application
  • Powder coat finish
  • Patented breakaway feature for fast, easy service
  • Operator "On/Off" safety switches
  • Keypad VFD controller
  • Manual feed bag top guide
  • Over temperature sensor shut down
  • Bag top air scrubber removes product debris from seal area
  • 24 volt AC control voltage
  • Dust tight NEMA 12 rated electrics
  • Electricals: 230/380/460 voltage, 3 phase
  • Options
    • Extended infeed system for automated applications
    • Left to right operating direction
    • Reverse fold-rear direction
    • Coder bag contact front print
    • Bag counter
    • Extended height pedestal
    • Motorized height adjustable lift
    • CR Plus:
      • 2-part corrosion resistant powder coat finish added for all painted parts
      • Enclosure and fasteners are upgraded to stainless steel
    • NEMA 4 electrics only: Upgrade switch handle, air flow sensor & solenoid valve
    • NEMA 4 splash resistant:
      • Includes NEMA 4 electrics only option plus gears, shafts, brackets, steel parts and fasteners are upgraded to stainless steel or nickel plating
      • Aluminum parts are anodized
    • NEMA 4x corrosion resistant:
      • Includes all NEMA 4 splash-resistant items plus NEMA 4x rated stainless steel electric enclosures, closed cartridge heaters and wash down electric motors added
    • Additional motor starter and contactor for conveyor
    • 575 voltage / 3 phase
    • Special export crating (wooden)
    • Recommended spare parts kit
